The
StellaDoradus SD-RP1002-G-4P
signal repeater is a remarkable device that is perfect in enhancing signal reception of your cellular devices. It works well in boosting voice calls & sms signal in your mobile devices, while your inside a highly-insulated buildings with thick concrete or dry walls and other construction materials that blocks cellular signal from getting in.
It's a must-have device for businesses that requires mobile calls to operate and run their day-to-day business operation, but cellular signal outside your building won't event penetrate your basement, roofs, and walls. Get one today and eradicate your weak signal issue inside your building. Enjoy a drop-call-free voice calls in no time!
On this YouTube Video, shows you an actual repeater installation for an actual client - Mater Hospital, Cork

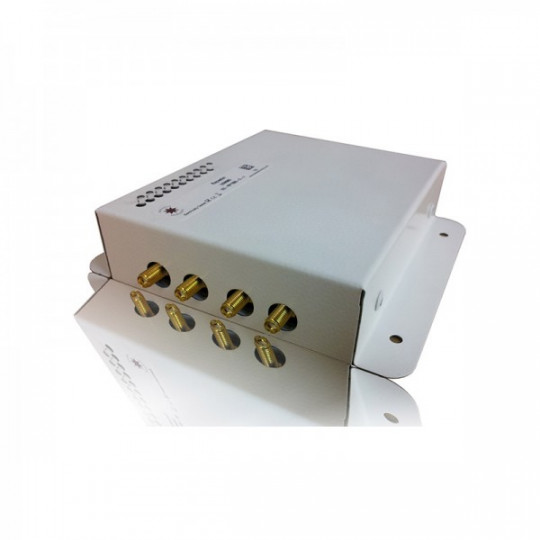

This GSM booster kit is similar to the SD-RP1002-G model, the only difference is the indoor antenna port. This model comes with 4-port indoor antenna connectors, to let you attach more indoor antennas inside the building. More indoor antenna means more area/rooms to be covered.
Notice the image below, where it shows the repeater connected to 4-indoor antennas. Each
antenna
serves as a mini cellphone tower, it re-transmits the amplified signal from the repeater device to your target area. Sample application shown below where each indoor antenna is installed in each floor of the building.
Reference Image: StellaDoradus Mobile Signal Repeater Installation Overview - Illustration showing the repeater how it is installed in a 4-storey building.
Repeater Features
-
Provides GSM (Voice & SMS) signal at 900Mhz for your large building
-
Coverage: 4000m2 (up to 15 rooms)
-
Compatible with all Irish & European mobile operators
-
Unlimited number of calls / data sessions at the same time
-
CE certified
-
Signal power and diagnostics indicator
-
Designed & Manufactured in Ireland
-
Complete operator network protection
-
Works with all known Irish mobile operators
-
ComReg Approved and
Legal to Use in Ireland
-
3-year Warranty
Technical Specfication
You cann read further below to know more about SD-RP1002-G-4P's technical specification.
|
Frequency Specifications
|
|
Frequency Bands (MHz)
|
880 – 960MHz
|
|
Coverage
|
(1000m
2
per antenna X 4) = ~15 rooms
|
|
Number of People
|
Unlimited
|
|
Gain
|
Uplink Gp > 50
Downlink Gp > 60dB
|
|
Pass Band Ripple
|
< 4dB
|
|
I/O Impedance
|
50 ohm/SMA Female Connector
|
|
Max Uplink/Downlink Signal Strength
|
17dBm / 10dBm
|
|
Ambient Temperature
|
-30°C to +70°C
|
|
Power Supply Input
|
110 - 240V AC
|
|
Power Supply Output
|
12v DC
|
|
Oscillation Control
|
Automatic
|
|
Level Control
|
Automatic (Automatically adjusts during installation. Thereafter, automatically adjusts for seasonal variation in pathloss between
Basestation and Outdoor Antenna)
|
|
Uplink Switch Off
|
Yes (The uplink amplifiers switch off when the repeater is not in use, thus reducing the uplink noise to almost zero. When
the repeater is in use (eg phone call being made), the uplink amplifier switches on for the duration of the call and a blue
LED switches on indicating this is the case)
|
|
AGC Range
|
30dB
|
|
Surge Protection
|
SMA Connectors DC Grounded, 12V DC Port MOV Protected
|
|
Antenna Specifications
|
|
Indoor Antenna
|
Outdoor Antenna
|
|
Nominal Gain
|
6.4dBi / 9.4dBi
|
10dBi
|
|
3dB beam Pattern
|
60ºC x 60ºC
|
60ºC x 50ºC
|
|
Bandwidth
|
790-960MHz + 1710-2700MHz
|
790-960MHz + 1710-2700MHz
|
|
VSWR
|
<1.4
|
<1.5
|
|
Front to Back Ratio
|
> 20dB
|
> 20dB
|
|
Polarization
|
Vertical
|
Vertical
|
|
Power Rating
|
50W
|
50W
|
|
Impedance
|
50-OHM
|
50-OHM
|
|
Termination
|
SMA Male
|
N-Female
|
|
Cross Pol. Discrimination
|
-20dB
|
-20dB
|
|
Dimensions
|
210 x 180 x 43mm
|
442 x 205 x 62mm
|
|
Weight
|
0.68kg
|
1.2kg
|
|
Wind Velocity
|
126km/hr
|
140km/hr
|
|
Working Temperature
|
-40ºC to +65ºC
|
-40ºC to +65ºC
|
|
Power Supply Specification
|
|
AC
|
100-240V, 50-60Hz
|
|
DC Input
|
12v, 0.7A
|
|
Typical Power Usage
|
15W
|
|
Mechanical Specification
|
|
Length
|
16cm
|
|
Width
|
15cm
|
|
Depth
|
3.5cm
|
|
Weight
|
0.6kg
|
|
Mounting
|
6 x 5mm holes for mounting
|
|
Note:
Specifications subject to change without notice.
|
How To Buy?
To buy this
Mobile GSM Booster for Office
, simply can call us to order using this number
087 8316664
or use the
Add to Cart
button on this page and go through the secured, easy and fast checkout process.
You can pay using your Credit Card via the Secured Stripe Payment Gateway.
How Will My Order Be Delivered?
All orders are shipped via express delivery and are normally delivered within 1-4 business days. Your order will be dispatched directly from our premises and you will be provided a tracking information for your order, after it is dispatched. If you have any questions on your order status, please
contact us
.
So, what are you waiting for? Order the
SD-RP1002-G-4P
today and start boosting your cellphone's signal, whether in your small office, multi-storey building, hotels, hospitals, warehouses or huge factories.
Use it as
Vodafone signal booster
, and will also work for 3, Meteor, Tesco, EIR, and other mobile networks in Ireland, Europe and the rest of the world.
